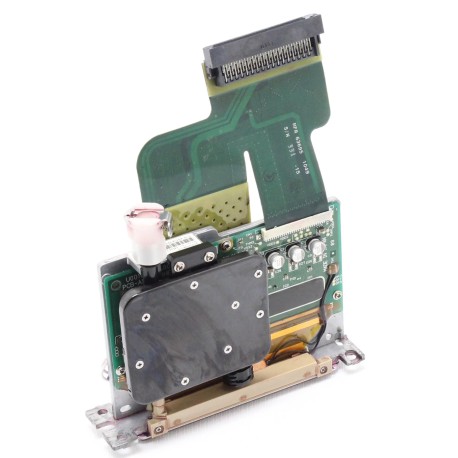

New and Original Spectra Sapphire QS-256 10PL Printhead

New and Original Spectra Sapphire QS-256 10PL Printhead
Performa Sapphire QS-256/10 AAA Printhead
Spectra Starfire QS-256 /10PL printhead for Flora/Gongzheng printer
Original Japan Fujifilm Dimatix Sapphire QS-256/10pl AAA inkjet print head for Fujifilm DMP-3000 / DMP-5000 inkjet printers


Spectra Sapphire QS-256 / 10PL Printhead
To be used with:
Spectra Sapphire QS-256
Durst Rho P10 160 / Rho 1012 / Rho 500R / Rho 750 HS / Rho 750 Presto / Rho P10 200 / Rho P10 250 / Rho P10 320R
Fujifilm DMP-3000 / DMP-5000
Inktec Jetrix 2513FRQ / Jetrix 3015FQ / Jetrix 2513FQ
Polytype VIRTU Quantum 25 / VIRTU Quantum 35
WP Digital RS25 / RS35

The Performa™ Sapphire QS-256/10 AAA printhead delivers best-in-class jetting accuracy combined with versatile grayscale operation. Its lightweight, thin-profile design and configurability plus support for a broad range of ink formulations makes this printhead model particularly suited to scanning printer architectures and applications.
Dimatix continues building upon its long history of excellent dot placement accuracy, channel-to-channel uniformity, low cross talk, and high-frequency/high-productivity with the Q-Class Sapphire printhead family.

The Sapphire QS-256/10 AAA printhead features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing. It is designed to eject adjustable 10 to 30 picoliter drops in binary jetting mode or a 10-picoliter fundamental drop in grayscale mode. This is done at a nominal 8-meter per second drop velocity when jetting fluids in the 10 to 14 centipoise range.

Dimatix’ breakthrough VersaDrop™ jetting technology is featured within the Sapphire QS-256/10 AAA printhead. It allows unparalleled flexible modes of operation including adjustable binary drop size and grayscale capability at unprecedented throughput rates.

The rugged, field proven material set selected for the Sapphire QS-256/10 AAA printhead deliver long service life and consistent output.
Using tailored waveforms and a durable, inert silicon nozzle plate to provide best-in-class drop placement accuracy, a wide range of ink formulations are accommodated including UV-curable, organic solvent and aqueous-based inks and associated maintenance fluids.

Precision registration points have been added to the printhead to provide absolute reference to the nozzles to within a few microns. This makes it possible to nest printheads together for high packing densities.
Shared physical features and identical interfaces as other Q-Class products allow the Sapphire QS-256/10 AAA to be intermingled with the same or complementary printhead models to create a multitude of single and multiple-color configurations.

Each 256-channel Sapphire printhead is offered with an integral temperature sensor and a configurable, dual-ported fluid interface comprised of O-ring face mounts or barbed fittings to facilitate fast flushing or recirculation of inks.
Printhead operational temperature can be up to 90° C. The driver chip is double buffered to support the Sapphire QS-256/10 AAA high-speed jetting capability

Specifications
- Technology: VersaDrop™ jetting
- Print Width: 64.77mm (2.55")
- Nominal Drop Size: 10 picoliter
- Adj. Range for Droplet Size: 10 to 30 picoliter
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 254 microns
- Firing Frequency: 50 kHz (16 kHz for 30 picoliter droplets)
- Operating Temperature: up to 90°C
- Ink Compatibility: UV curable, Organic solvents, and aqueous inks
Durst
    Rho P10 160
    Rho 1012
    Rho 500R
    Rho 750 HS
    Rho 750 Presto
    Rho P10 200
    Rho P10 250
    Rho P10 320R

Fujifilm
    DMP-3000
    DMP-5000

Inktec
    Jetrix 2513FRQ
    Jetrix 3015FQ
    Jetrix 2513FQ

Polytype
    VIRTU Quantum 25
    VIRTU Quantum 35

WP Digital
    RS25
    RS35
